Function Reference: geom.curvature

drafting: K = geom.curvature (P)
drafting: K = geom.curvature (P, CLOSED)
drafting: [K, R] = geom.curvature (…)

Signed curvature of a sampled planar curve.

K = geom.curvature (P) returns the signed curvature at each point of the curve whose points are the rows of the N-by-2 matrix P. K is an N-by-1 vector in reciprocal units of P, so with the package convention of millimetres it is in reciprocal millimetres.

K = geom.curvature (P, CLOSED) treats the curve as closed when CLOSED is true, joining the last point to the first. An explicitly repeated closing point is accepted and ignored. CLOSED defaults to false.

[K, R] = geom.curvature (…) additionally returns the signed radius of curvature R, which is 1 ./ K. A straight run gives zero curvature and an infinite radius; neither is an error.

The sign carries the direction of turning. K is positive where the curve turns counter-clockwise, so on a counter-clockwise closed curve a positive value means the centre of curvature lies on the interior side. This is the sign an inward offset must respect: an inward offset of D is geometrically valid only where D does not exceed 1 / K at every point whose curvature is positive.

The curvature at a point is that of the circle through it and its two neighbours, which is exact for points sampled from a circle at any spacing and needs no estimate of a derivative. On an open curve the two end points have no such neighbourhood and are returned as NaN.

Three coincident or collinear points give zero curvature rather than an error, since a sampled curve legitimately contains straight runs.

See also: geom.curveoffset, geom.curvesample, geom.selfintersects

Source Code: geom.curvature

Curvature is measured from the circle through each point and its two neighbours, so it is exact for points taken off a circle at any spacing. The sign says which way the curve turns.

 t = linspace (0, 2*pi, 361)(1:360)';
 P = (30 + 5 * cos (6 * t)) .* [cos(t), sin(t)];
 [K, R] = geom.curvature (P, true);
 printf ('tightest radius %.2f mm at a crest, %.2f mm in a root\n', ...
         min (abs (R(K > 0))), min (abs (R(K < 0))));
tightest radius 5.71 mm at a crest, 4.06 mm in a root

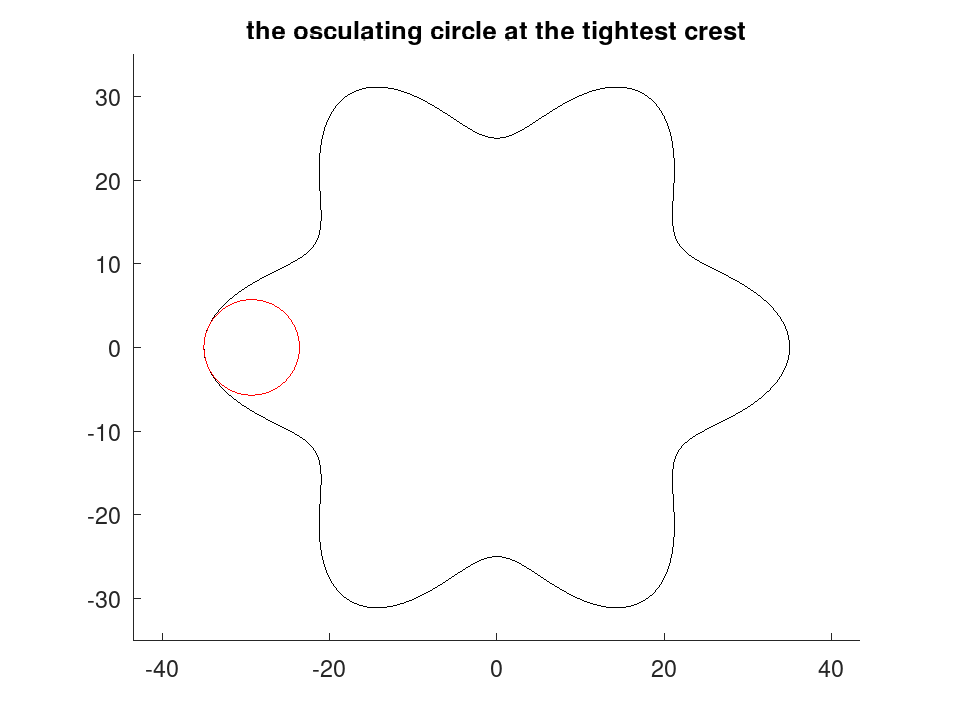

 D = draw.Drawing ().polyline (P, true);
 D.Colour = 'red';
 [~, i] = max (K);
 D = D.circle (P(i,:) - R(i) * (P(i,:) / norm (P(i,:))), abs (R(i)));
 plot (D);
 title ('the osculating circle at the tightest crest');
plotted figure
