Function Reference: geom.centroid

drafting: C = geom.centroid (P)

Area centroid of a simple polygon.

C = geom.centroid (P) returns the centroid of the polygon whose vertices are the rows of the N-by-2 matrix P, as the 1-by-2 row vector [x, y].

This is the area centroid, not the mean of the vertices. The two differ whenever the vertices are unevenly spaced around the outline: for the L-shaped polygon [0, 0; 4, 0; 4, 2; 2, 2; 2, 4; 0, 4] the area centroid is [1.667, 1.667] while the vertex mean is [2, 2]. The area centroid is the one that behaves as a balance point.

The polygon is implicitly closed and its orientation is irrelevant, since the sign of the area cancels.

A polygon of zero area has no defined centroid and raises an error.

See also: geom.signedarea, geom.bbox

Source Code: geom.centroid

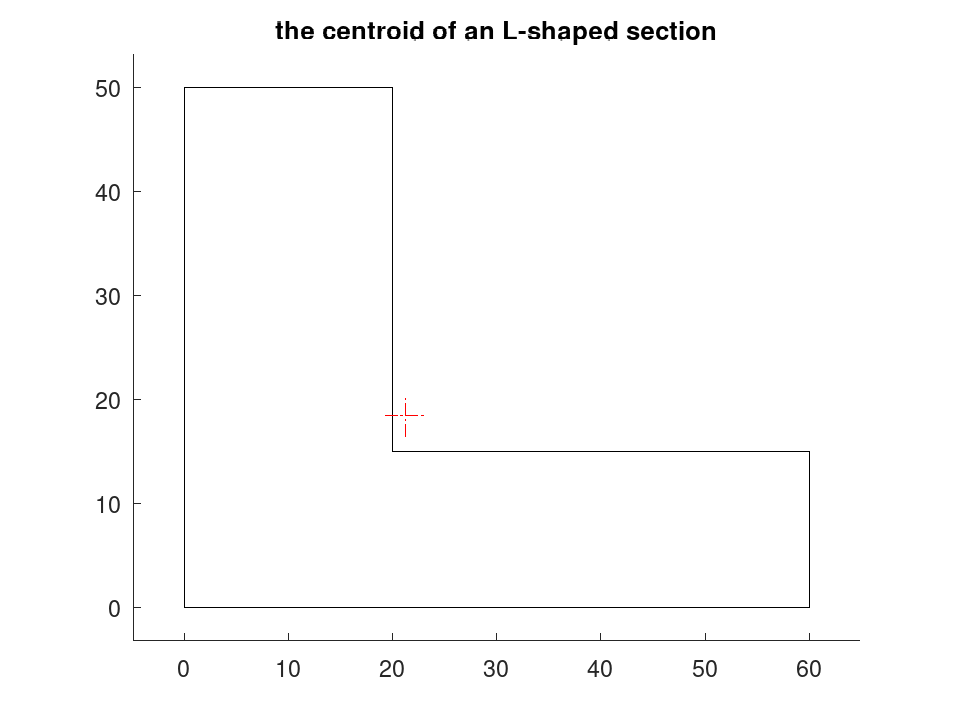

The centroid of the enclosed area, which for an L-shape lies well away from the centre of its bounding box --- and outside the material for a shape concave enough.

 L = [0, 0; 60, 0; 60, 15; 20, 15; 20, 50; 0, 50];
 C = geom.centroid (L)
C =

   21.250   18.438
 D = draw.Drawing ().polyline (L, true);
 D.Colour = 'red';
 D.Linetype = 'CENTER';
 D = D.centremark (C, 8);
 plot (D);
 title ('the centroid of an L-shaped section');
