Function Reference: geom.bbox

drafting: B = geom.bbox (P)
drafting: [B, W, H] = geom.bbox (P)

Axis-aligned bounding box of a set of points.

B = geom.bbox (P) returns the axis-aligned bounding box of the points given as rows of the N-by-2 matrix P, as the 1-by-4 row vector [xmin, ymin, xmax, ymax].

[B, W, H] = geom.bbox (P) additionally returns the width W and height H of the box.

Unlike most of this namespace, geom.bbox accepts any point set, not only a polygon: a single point is valid input and yields a box of zero width and height.

See also: geom.signedarea, geom.centroid, geom.largestrect

Source Code: geom.bbox

The extent of a set of points, and the width and height with it.

 t = linspace (0, 2*pi, 181)(1:180)';
 P = (30 + 5 * cos (5 * t)) .* [cos(t), sin(t)];
 [B, W, H] = geom.bbox (P)
B =

  -29.870  -33.668   35.000   33.668

W = 64.870
H = 67.336
 D = draw.Drawing ().polyline (P, true);
 D.Linetype = 'PHANTOM';
 D.Colour = 'red';
 D = D.polyline ([B(1), B(2); B(3), B(2); B(3), B(4); B(1), B(4)], true);
 plot (D);

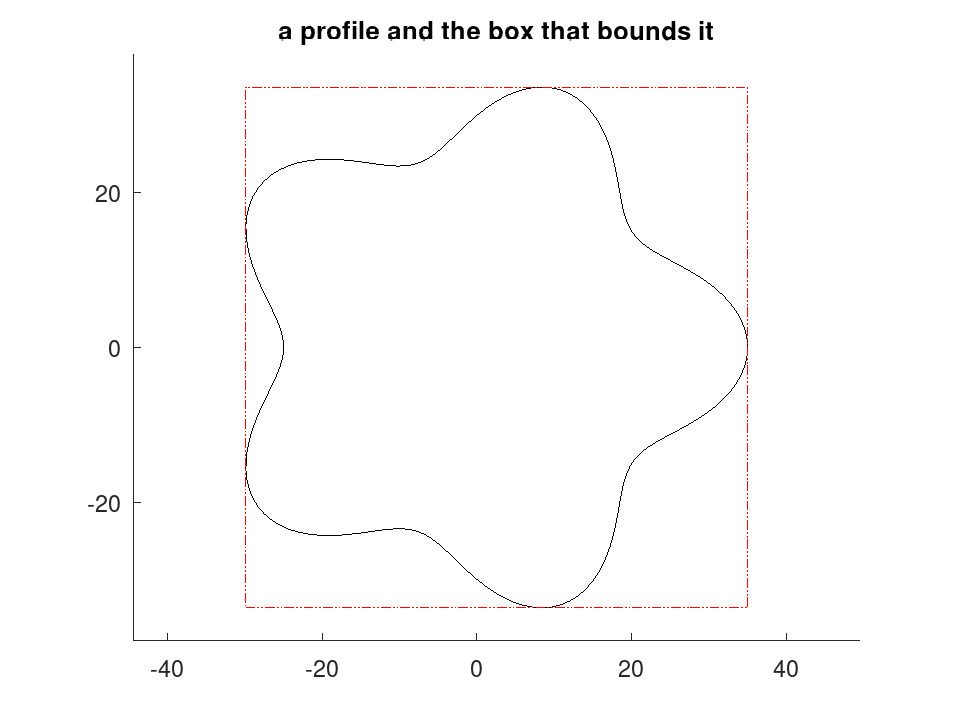

 title ('a profile and the box that bounds it');
plotted figure
